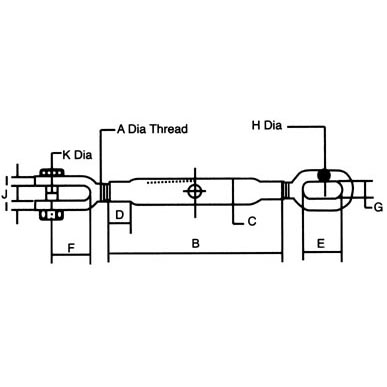

ITEM NO	SWL	A	B	C	D				E			WEIGHT
		DIA SCREW	LENGTH OF BODY	DIA OF BODY	JAW				OVALEYE			Per piece
					DIA	DIA PIN	INSIDE		DIA	INSIDE
							LENGTH	WIDTH		LENGTH	WIDTH
					D1	D2	D3	D4	E1	E2	E3
	TON	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg
	0.10	6	102	12	3	5	15	7	6	15	8	0.11
	0.15	8	110	15	4	6	16	9	7	19	10	0.23
	0.375	10	152	21	5	8	21	11	8	25	11	0.28
	0.50	12	175	27	6	10	25	13	11	30	14	0.8
	0.75	16	229	27	10	12	40	18	14	41	16	1.4
	1.125	20	229	33	12	16	45	20	16	51	22	2
	1.60	22	305	33	15	18	48	24	16	51	22	3.5
	2	24	325	42	16	22	65	28	19	57	25	4
	2.75	28	356	48	18	22	59	30	19	57	28	4.5
	3.75	33	381	48	20	27	62	34	22	65	35	6.5
	4.25	35	381	60	22	28	68	38	22	65	36	8
	5	39	406	60	24	33	74	42	25	74	38	11
